BLT-150 Silenced Type
2318 Kg
Operating Weight:
125 - 155 mm
Tool Diameter:
11 - 30 tons
Applicable Carrier:
| KEY SPECIFICATIONS | ||
|---|---|---|
| Metric | Unit | |
| Carrier Weight | 24 ~ 27 | ton |
| Operating Weight | 2318 | kg |
| Impact Frequency | 200 ~ 300 | bpm |
| Overall Length | 2330 | mm |
| Working Oil Flow | 150 ~ 210 | l/min |
| Operating Pressure | 180 ~ 200 | bar |
| Relief Pressure | 230 | bar |
| Back Pressure | 17 ~ 20 | bar |
| Accumulator Pressure | 55 ~ 60 | bar |
| Tool Diameter | 150 | mm |
| Hose Diameter | 1 | inch |
| Functions | |
|---|---|
| Functions | Standard [●] Option [○] |
| Impact Frequency Control | ● |
| Automatic Lubrication System | ● |
| ABF (Anti-Blank Firing) System | ● |
| BLTBM (Remote Tracker) | ● |
| Dust Suppression System | ● |
| Sound Supression Unit | ● |
| Dust Protector | ● |
| 2-Level Stroke Control | ● |
| Accumulator | ● |
| Extra Accumulator | ○ |
| Exchangeable Wear Plate | ● |
| Exchangeable Inner Bushing Sleeve | ● |
| High Temperature Skit | ○ |
| Underwater Application | ○ |
View Current offers
Build&Quote
Contact Local Dealer
Download Brochure
Request Demo
Features
MIC shock-absorption technology helps reduce operating noise and limit vibration transferred to the carrier excavator.
The full-coverage casing helps protect the breaker body and internal components during demanding site operations.
The BLT-150 operates with 150–210 L/min hydraulic flow and 180–200 bar working pressure for consistent impact performance.
Optimized maintenance access supports easier servicing, while the vibration-dampening design helps reduce operating stress and extend service life.

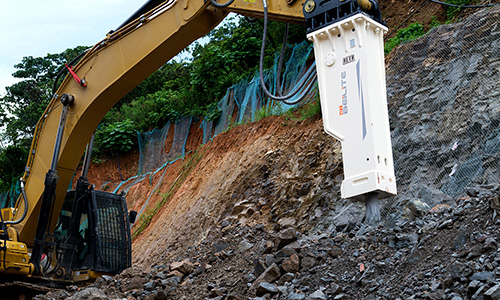

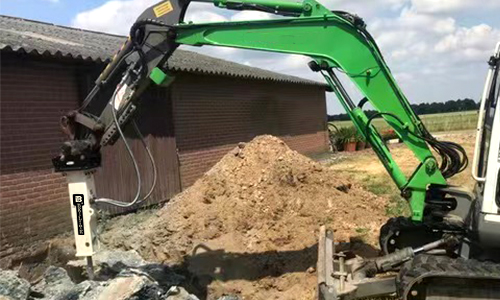

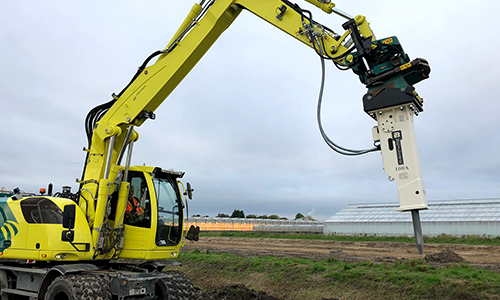

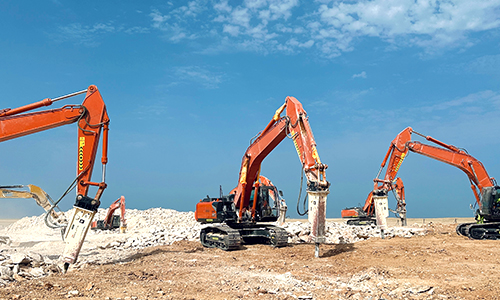

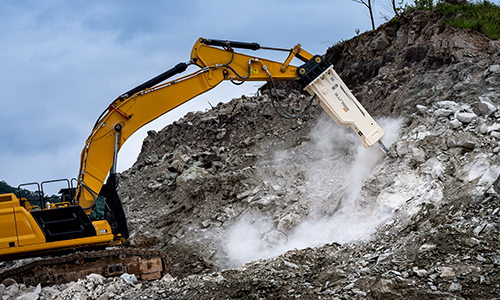

Gallery

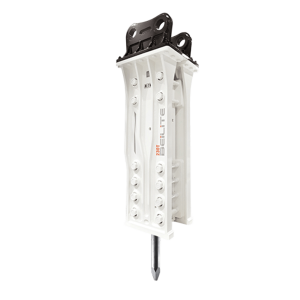

Related products
BLT-150 Silenced Type Hydraulic Breaker
The BLT-150 Silenced Type is a heavy-duty hydraulic breaker designed for 24–27 ton excavators. Its MIC shock-absorption technology and protective casing help reduce operating noise and vibration while maintaining reliable breaking performance. With a 150 mm chisel and 200–300 BPM impact rate, it is suitable for demolition, mining, quarrying, tunnelling and infrastructure applications.
FAQ
A:
The BLT-150 is designed for excavators in the 24–27 ton class.
