side mounted hydraulic breakers manufacturers & suppliers
If you are considering investing in a side-mount hydraulic breaker, or looking to expand your product line as a dealer, we are ready to support you. Our team can help you select the right model for your vehicle, provide detailed technical specifications, and tailor OEM or private-label solutions to meet your business needs.
side mounted hydraulic breakers

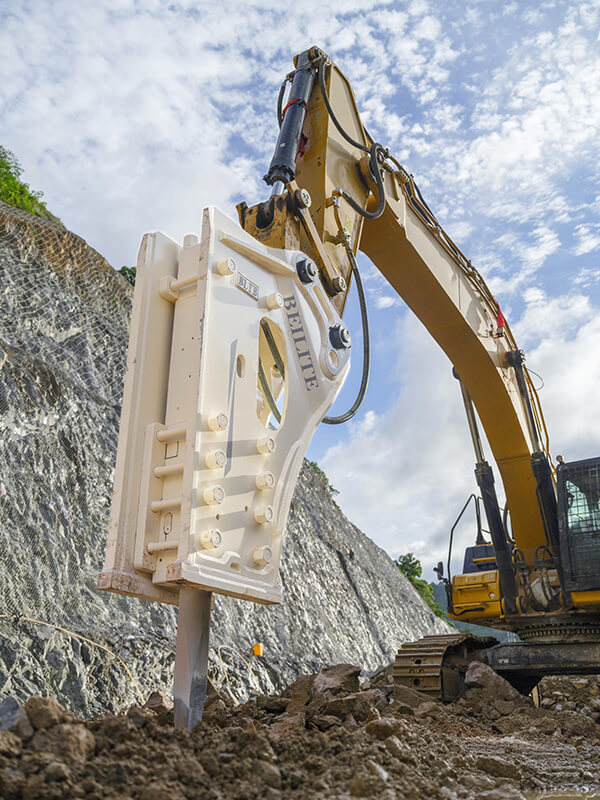

Take full advantage of the excavator’s versatility. Designed specifically for tasks such as trenching, tunnel boring, and vertical wall finishing, it can handle work scenarios that traditional top-mounted breakers cannot reach.
PRODUCT LINE
HOUSING TYPE
APPLICABLE CARRIER
Power Type
Tool Diameter
Why You Should Trust BEILITE
Massive Production Capacity, On-Time Delivery
Backed by our state-of-the-art manufacturing facilities and lean production lines, BEILITE possesses robust mass production capabilities. From order confirmation to global shipping, we strictly adhere to time management standards. Whether it’s a large-volume stock order or an urgent restock, we guarantee on-time delivery to ensure your inventory operates efficiently.
fast spare parts delivery
We are more than just a manufacturer—we are the cornerstone of your brand’s growth. BEILITE offers highly flexible OEM/ODM services tailored to your specific needs. Whether it’s manufacturing according to your technical drawings, adjusting performance parameters, or applying your exclusive branding and custom exterior designs, we execute with precision. Leveraging over a decade of industry expertise, we help you build a highly competitive product line and capture exclusive profit opportunities in regional markets.
Are you ready to expand your circuit breaker product line with a reliable manufacturing partner?
Contact BEILITE today for exclusive dealer pricing & samples

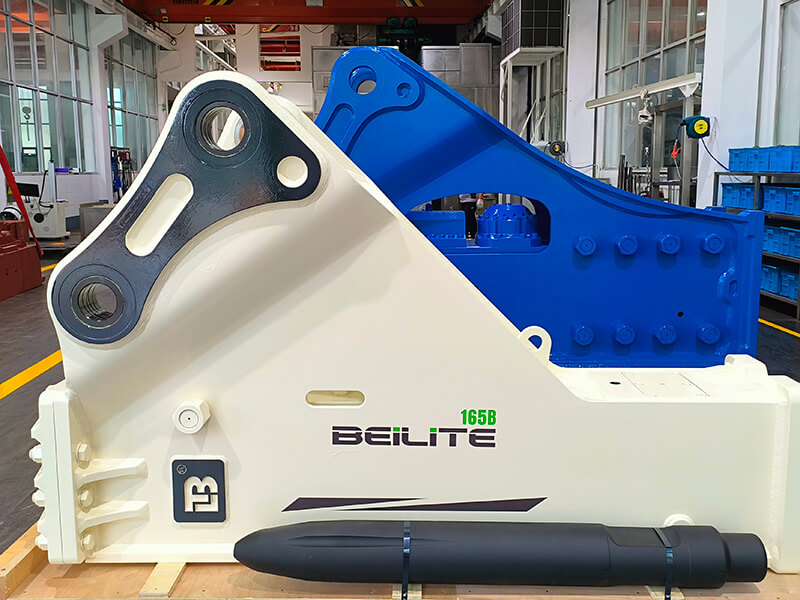

about BEILITE side-mounted breaker
Many hydraulic breakers struggle to operate effectively in confined spaces. BEILITE’s side-mounted hydraulic breakers feature an innovative structural design that makes them particularly well-suited for confined environments such as tunnels, basements, and urban demolition sites.
Our side-mount hydraulic breakers are far more than simple design improvements; they are meticulously engineered to address three key challenges: working efficiently in confined spaces, protecting the host machine, and minimizing maintenance costs.
Ultimate Host Protection
By using CAE analysis, we have made the structure and weight distribution more efficient, which has made the centre of gravity lower than similar products. This greatly reduces the transmission of operational stress, which improves the stability of crushing operations and also substantially reduces structural damage to the excavator’s boom and undercarriage. This means you will save money on costly maintenance for the main unit.
Field of view with no blind spots
Its slim body and open-frame design minimise visual obstructions. Operators have an unobstructed view of the work area, enabling “point-and-shoot” precision — whether performing delicate trenching or hazardous demolition work. This enhances operational accuracy and effectively prevents on-site accidents.
Redefining Mobility
In scenarios with limited space—such as urban renewal projects, interior demolition, and utility trench excavation—long equipment is often difficult to deploy effectively. The side-loading design is compact, and BEILITE has further eliminated redundant housing structures, allowing it to easily navigate narrow passages and operate on floors with low ceiling heights. This enables you to take on challenging projects that other equipment cannot handle, thereby expanding your business scope.
Zero Maintenance Threshold
Sealed hydraulic breakers are difficult to maintain, which not only extends downtime but also wastes a significant amount of time and physical effort during disassembly and reassembly.
In contrast, an open-frame design provides easier access to key wear parts, such as oil injection valves, seals, and through bolts. As a result, routine maintenance and parts replacement no longer require cumbersome disassembly procedures, ensuring the equipment is always ready for use.
Better Return on Investment
Fully enclosed, soundproof hydraulic breakers are expensive. We have simplified the design of non-core components and focused our investment on the core hydraulic energy conversion system, significantly lowering the entry barrier while ensuring reliable crushing performance. This makes it ideal for customers seeking value for money.
FAQ
Q: What is a side-mount hydraulic breaker?
Side-mount breakers, also called “triangular” breakers because of their special frame design, are some of the most popular hydraulic breaker types available. Its side-plate structure provides strong protection for the main components while keeping the design simple and long-lasting. These breakers are often used in construction, demolition, quarrying, and municipal engineering because they are reliable, cheap, and easy to maintain.
Q: Do you offer OEM or private-label manufacturing services?
A: Yes. We offer comprehensive OEM and private-label services for dealers, distributors, and equipment brands looking to expand their product offerings. Our team can accommodate custom specifications, branding, color schemes, and packaging requirements. Whether you are building a new product line or sourcing attachments to complement your existing equipment brand, we have the manufacturing capability and flexibility to meet your needs. Please contact our sales team to discuss your requirements in detail.
24-hour online support
Our dedicated global technical support team is available online 24/7. No matter the time zone or the complexity of the issue, our experts are always on standby to answer your call immediately and provide instant assistance.
ultimate wholesale guide to side-mounted hydraulic breakers
This guide is designed specifically for our customers. This step-by-step purchasing guide will help you find the most suitable side-mount breaker based on your specific equipment and working conditions. After reading this article, you will have a clear framework for making confident and profitable investment decisions.
What's the difference?
The main feature of a side-mount hydraulic breaker is its compact, side-panel housing design. Compared to box-type hydraulic breakers, the overall width of a side-mount design is typically narrower, making it easier to position in tight work areas and simplifying installation on excavators.
The dual-side-plate design provides robust protection for internal components, effectively shielding the cylinder block and piston assembly from external impacts and debris. At the same time, the relatively simple structural layout facilitates inspection, maintenance, and parts replacement—a significant advantage for contractors focused on operational efficiency and minimizing downtime.
How to choose the right side-mounted hydraulic breakers
Choosing a side-mount hydraulic breaker is not simply a matter of matching the excavator’s tonnage and flow rate. Because the side-mount configuration disrupts the excavator’s original symmetrical load distribution and center of gravity, the selection process actually involves a comprehensive evaluation of mechanical strength, kinematics, safety, and ergonomics.
Ensure compatibility with your machine
Before assessing the specific risks associated with side-mounted rock breakers, it is still necessary to select the appropriate breaker based on the host machine’s operating weight, hydraulic flow, pressure, and required impact energy. These baseline criteria apply to all hydraulic rock breakers.
- Host Machine Weight Matching: In a side-mount installation, the weight of the breaker must be evaluated not only based on the host machine’s size but also by considering the eccentricity and lateral balancing effects.
- Hydraulic Flow and Pressure: Proper hydraulic matching remains critical, but side-mount hose routing may increase hydraulic line exposure, pressure loss, and heat buildup.
- Impact Energy: Higher impact energy improves breaking performance but also increases the torsional stress on the side brackets, pins, and the carrier’s structure.
Want to learn more? Read our complete guide: How to Choose Hydraulic Breakers
However, in a side-mounted configuration, these factors must also be evaluated in conjunction with eccentric loads, hose routing, and lateral stability.
Torsional Design of the Mounting Bracket and Pivot Pin
During operation, side-mounted hydraulic breakers are installed eccentrically, causing the mounting bracket and pivot pin to be subjected to enormous lateral torque and shear forces.
Ensure that the rib layout of the side-mount bracket is appropriate and that the ribs are of sufficient thickness. The diameter of the pin must be verified through strength calculations, and high-strength alloy steel should be used as the material. Additionally, Verify the bracket’s resistance to lateral tensile forces. It is recommended to consult regarding the expected replacement cycle of the pin to assess its torsional redundancy.
Kinematic Interference Check

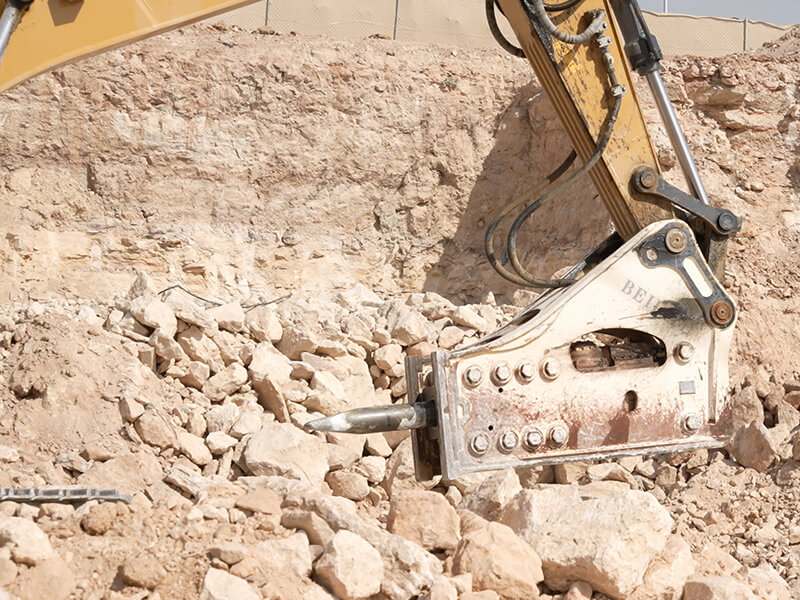

The most easily overlooked potential hazard with side-mount configurations is whether the hydraulic breaker will come into physical contact with the excavator when it is retracted or when the boom is lowered. During on-site inspections or test runs, be sure to move the boom and dipper arm to their extreme positions and carefully check whether there is a safe clearance between the hydraulic breaker housing and the excavator’s structural components.
Rotary Bearing Load Capacity Assessment
The eccentric weight of a side-mounted breaker applies asymmetric, alternating loads to the rotary bearing when the excavator initiates or stops rotation, accelerating wear. It is essential to consult the excavator’s original manufacturer’s specifications regarding permissible off-center loads. The total weight of the side-mounted breaker should not exceed the safety margin for off-center loads of the rotary platform.
Lateral Center of Gravity Shift and Slope Stability
Side-mount configuration causes the excavator’s center of gravity to shift significantly to one side. If your work conditions frequently involve operating on slopes or soft ground, you must conduct an additional assessment of the lateral overturn safety factor. Install wider track shoes on the excavator or add counterweight on the opposite side to balance the lateral overturn moment.
Hose routing and scratch-resistant design
The side-mount configuration places the high-pressure oil hoses closer to the exterior, making them more susceptible to snagging and tearing. When purchasing, prioritize models with concealed hose routing. For hoses that cannot be concealed, equip them with high-strength impact-resistant guards and fire-resistant, abrasion-resistant hose covers.
Operator's view
Side type is often obstructed by the right-side pillar of the cab, the base of the boom, or the cylinder of the luffing arm, which directly affects the operator’s field of view.
Quick-Change Compatibility
Verify that the connection dimensions are compatible with your existing mechanical or hydraulic quick-change couplers. Quickly and safely switch between a “side-mount breaker” and a “standard front-mount bucket.”
One last thing I’d like to say
When properly selected and well-maintained, side-mount hydraulic breakers offer an excellent balance of stability, visibility, and value. Their low center of gravity enhances operational stability and reduces stress on the carrier. The open frame and narrow body design improve the operator’s visibility and maneuverability in tight spaces. At the same time, their simple construction makes them cost-effective, easy to maintain, and widely applicable across various industries.
For contractors, dealers, and independent operators seeking reliable performance and uncomplicated operation, side-mount breakers remain one of the most practical and proven solutions on the market.
