/ BLT – 235 Side

BLT – 235 Side

9860 Kg
Operating Weight:
200 - 235 mm
Tool Diameter:

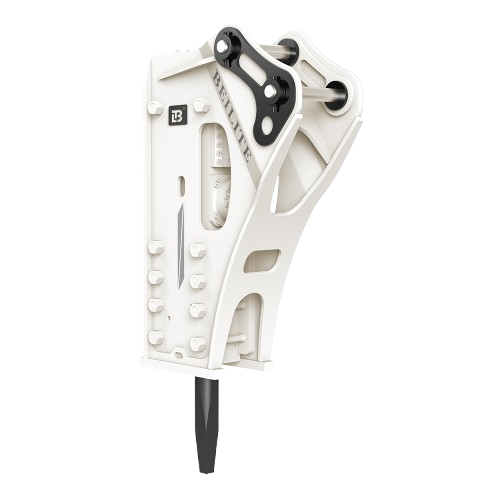

Side mounted Type Hydraulic Breaker

Specifications

Description Unit Metric
Carrier Weight ton 75 ~ 100
Operating Weight 9860
Impact Frequency bpm 80 ~ 110
Overall Length mm 3110
Working Oil Flow l/min 420 ~ 480
Operating Pressure bar 300 ~ 330
Relief Pressure bar 350
Back Pressure bar 32 ~ 35
Accumulator Pressure bar 75 ~ 80
Tool Diameter mm 235
Hose Diameter inch 1.1/2

Application

Standard [●]   Option [○]

Description-
Impact Frequency Control ●
Automatic Lubrication System ●
ABF (Anti-Blank Firing) System●
BLTBM (Remote Tracker) ●
Dust Suppression System●
Sound Suppression Unit ○
Dust Protector ●
2-Level Stroke Control ●
Accumulator ●
Extra Accumulator ○
Exchangeable Wear Plate ●
Exchangeable Inner Bushing Sleeve ●
High Temperature Skit ○
Underwater Application○

View Current offers

Build&Quote

Contact Local Dealer

Download Brochure

Request Demo

Features

BLT-235 Side Mounted Hydraulic Breaker

The BLT-235 Side Mounted Hydraulic Breaker is designed for 75–100 ton excavators and demanding rock breaking, mining, quarrying, concrete demolition, and asphalt removal. With a 235 mm chisel, 420–480 L/min oil flow, and 80–110 BPM impact rate, it provides strong and consistent breaking performance for heavy-duty applications.

FAQ

A:

It is designed for 75–100 ton excavators. Always confirm the carrier’s hydraulic specifications and mounting dimensions before installation.
