BLT-135 Silenced Type
1730 Kg
Operating Weight:
125 - 155 mm
Tool Diameter:
11 - 30 tons
Applicable Carrier:
| KEY SPECIFICATIONS | ||
|---|---|---|
| Metric | Unit | |
| Carrier Weight | 18 ~ 22 | ton |
| Operating Weight | 1730 | kg |
| Impact Frequency | 350 ~ 500 | bpm |
| Overall Length | 1993 | mm |
| Working Oil Flow | 100 ~ 150 | l/min |
| Operating Pressure | 160 ~ 180 | bar |
| Relief Pressure | 210 | bar |
| Back Pressure | 6 ~ 8 | bar |
| Accumulator Pressure | 55 ~ 60 | bar |
| Tool Diameter | 135 | mm |
| Hose Diameter | 1 | inch |
| Functions | |
|---|---|
| Functions | Standard [●] Option [○] |
| Impact Frequency Control | ● |
| Automatic Lubrication System | ● |
| ABF (Anti-Blank Firing) System | ● |
| BLTBM (Remote Tracker) | ● |
| Dust Suppression System | ● |
| Sound Supression Unit | ● |
| Dust Protector | ● |
| 2-Level Stroke Control | ● |
| Accumulator | ● |
| Extra Accumulator | ○ |
| Exchangeable Wear Plate | ● |
| Exchangeable Inner Bushing Sleeve | ● |
| High Temperature Skit | ○ |
| Underwater Application | ○ |
View Current offers
Build&Quote
Contact Local Dealer
Download Brochure
Request Demo
Features
MIC shock-absorption technology helps reduce operating noise and limit vibration transferred to the excavator.
The enclosed breaker structure helps protect internal components while supporting reliable operation in demanding working environments.
The BLT-135 operates with 100–150 L/min hydraulic flow and 160–180 bar working pressure for consistent breaking performance.
Optimized service access makes routine maintenance easier, while vibration control helps reduce operating stress and support longer component life.
Gallery
Related products

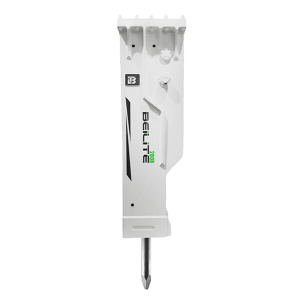

BLT-135 Silenced Type Hydraulic Breaker
The BLT-135 Silenced Type is a hydraulic breaker designed for 18–22 ton excavators. Its MIC shock-absorption technology and full-body casing help reduce operating noise and vibration while protecting the breaker during demanding work. With a 135 mm chisel and 350–500 BPM impact rate, it is suitable for demolition, rock breaking, roadwork, mining and municipal construction.
FAQ
A:
The BLT-135 is designed for excavators in the 18–22 ton class.
